PSR-WS-30 Slip ring for Wind Turbine

Product Type:windturbine-sliprings Product Model:PSR-WS-30 Slip ring for Wind Turbine
Based on solid experience for Minitary , our wind turbine business group design and make slip rings specially for wnd turbine , that cover from 500KW to 2.5MW . All of these slip rings have been approved high quality over 3 years with no maintenance and free of any trouble...
  • Performan

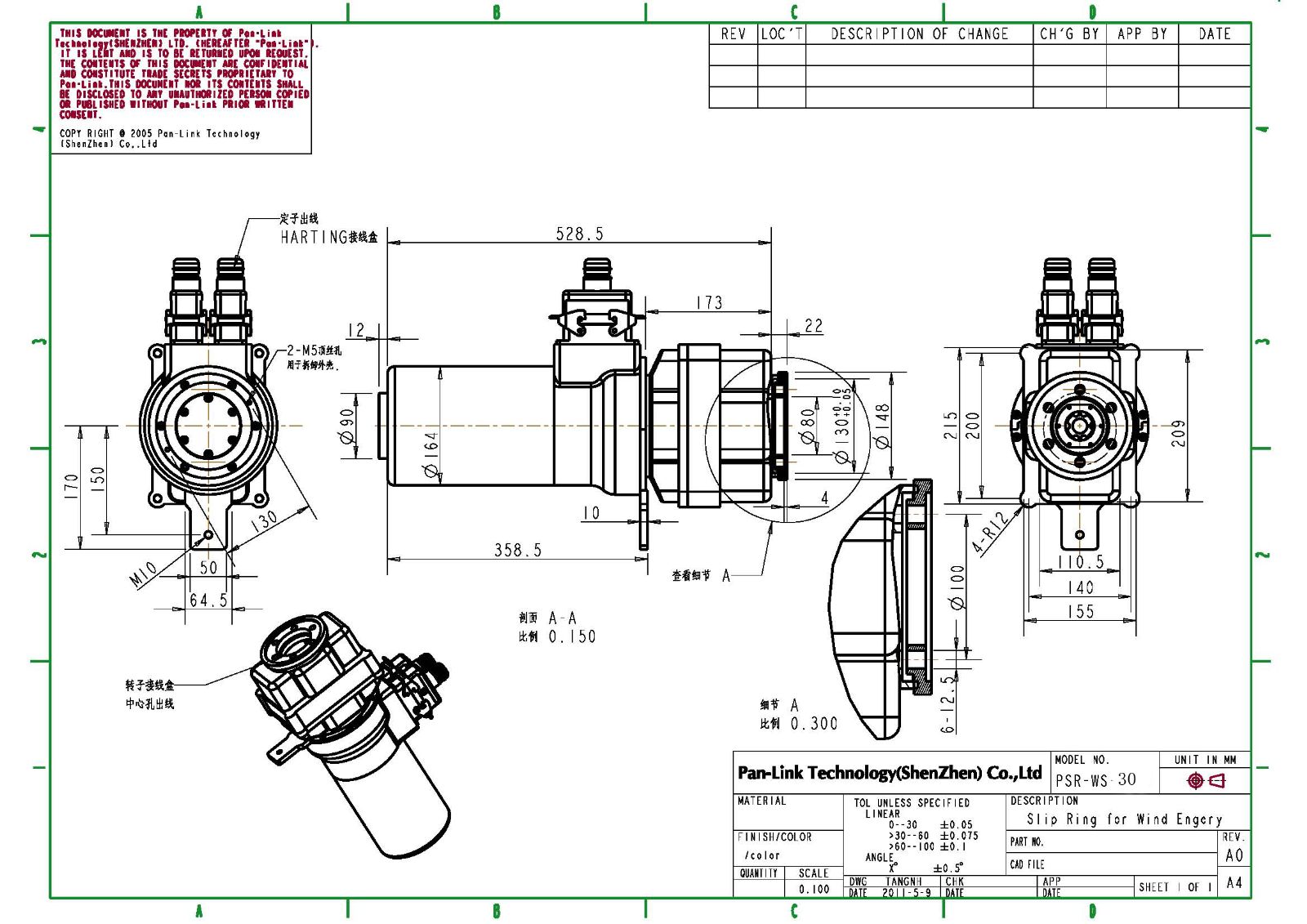

  • Drawings
  • Feature

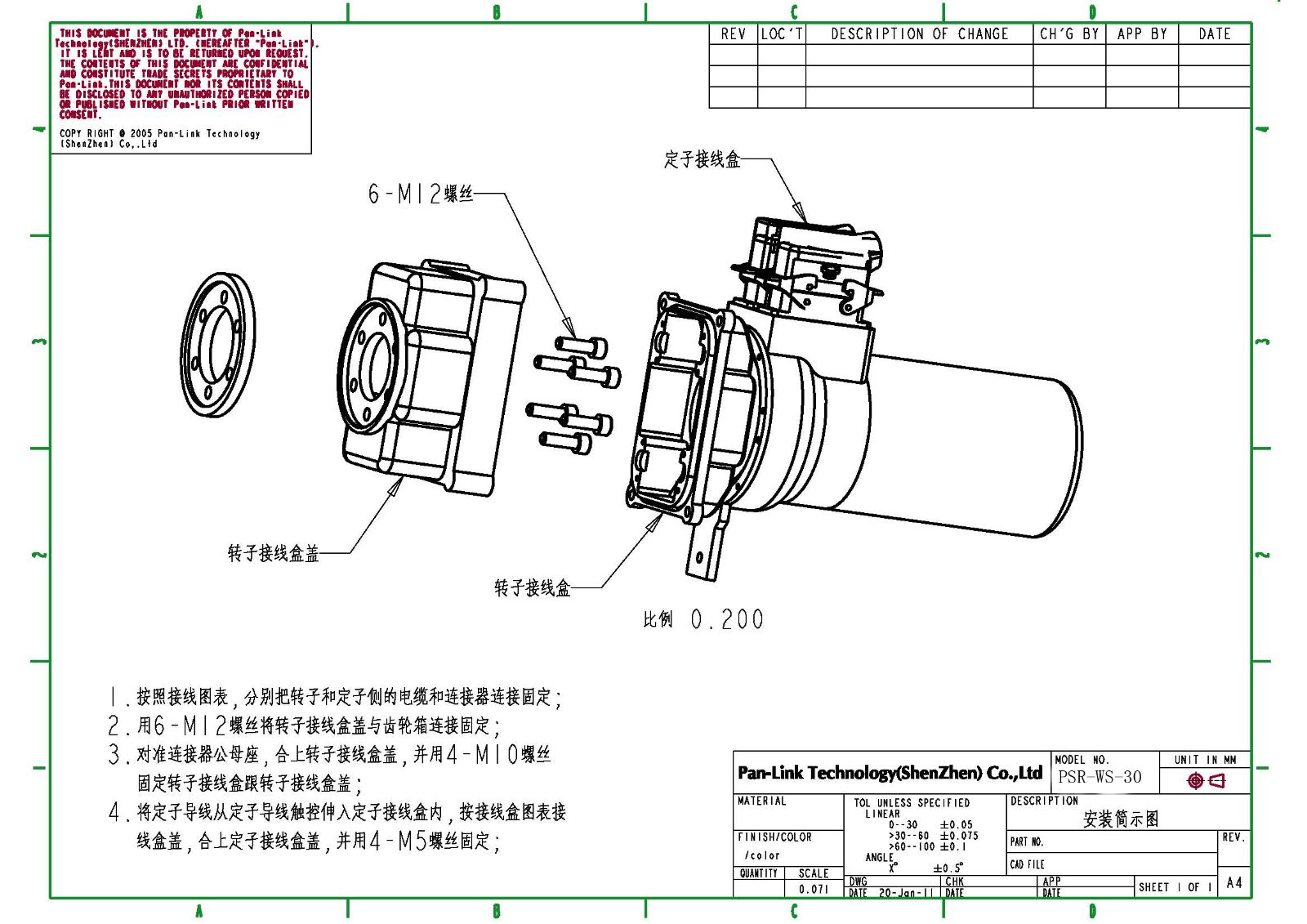

  • Install
  • Order
  • Download


      1    Combine slip ring and FORJ

      2    Media Rotary Joint

      3   Communication signal:Ethernet 、Profibus、CAN-BUS、RS485、Inter Bus、RS422

PSR-WS-30-----For 850KW--2.5MW Wind Turbine

Performance specifications:

  1. Main power:          5circut,60A/Ring,690V/AC
  2. Support power:    4circuit,10A/Ring,240V/AC
  3. Control Signal:      12Circuit,5A/Ring,24V/DC
  4. Communication: 9Circuit,2A/Ring,24V/DC
  5. Easy for set up
  6. Flange for set up
  7. Long life up to 20 years
  8. Combine signal and power in same slip ring
  9.  Seel class :             IP65
