Slip ring for Marine

Product Type:Slip ring for Martine Product Model:PSR-S13
The model PSR-S13-7 series is a compact , rugged unit designed for harsh operating conditions.such as marine small system . It is availabel for underwater 400m operational after it is adapted for use as a fluid filled pressure compensated unit ....
  • Performan

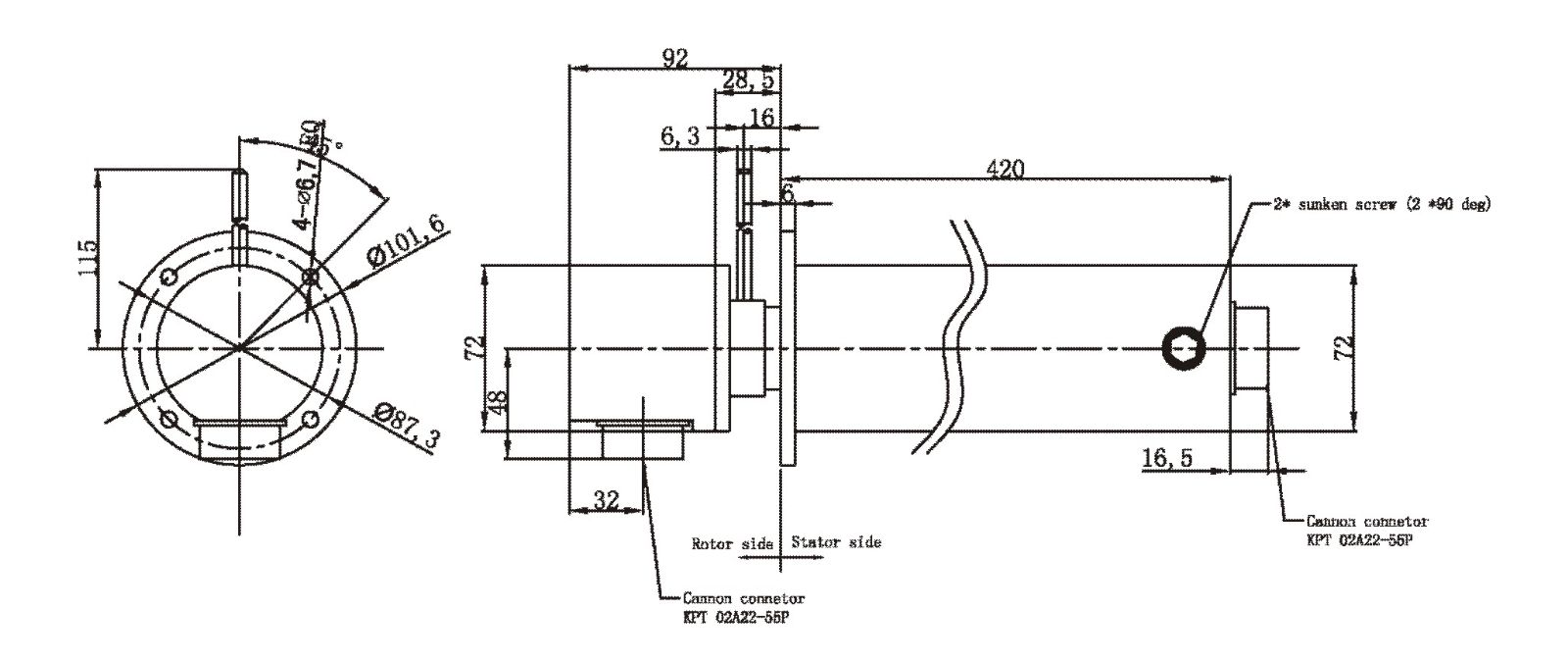

  • Drawings
  • Feature
  • Install

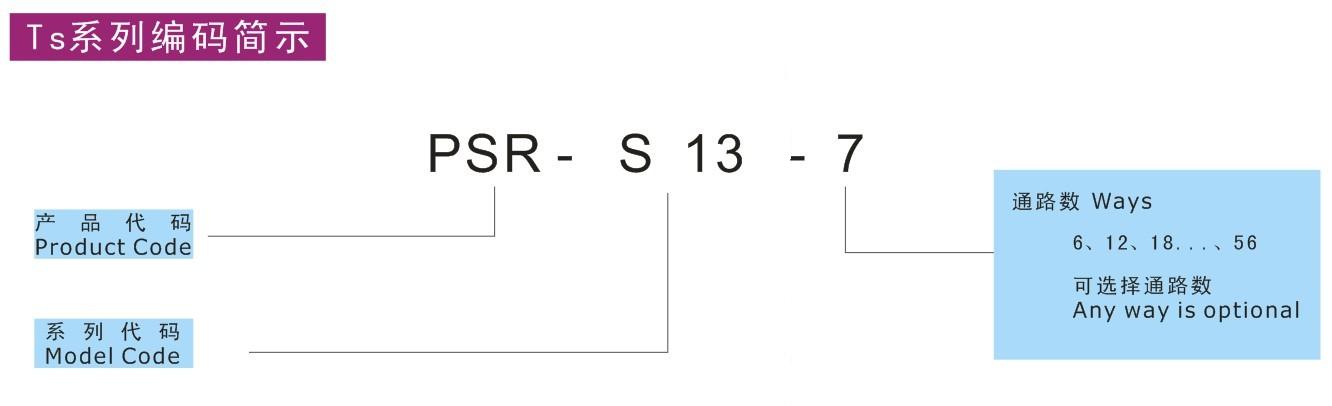

  • Order
  • Download

 Electrical Spec.

Options

Rating voltage

1000VAC/1500VAC

Flange for set up

Rating current

5A ,10A ,15A /Ring

Optional watertight cable or watertight connector connection;Optional hydraulic or optical fiber used in combination

Insulation resistance

1000M@500VDC

Can combine more circuits:1-200Ring

Dielectric strength

4000VDC @50Hz

Can combine Fiber rotary joint

Electrical noise

10mΩ@6VDC,50mA, 5Rpm

Wire exit or connector

 Mechanical Spec

 Environment

Speed

300-4000Rpm

Working temperature

-40~+80

Torque

40N.cm

Mechanical vibration

MIL-SID-810E

Seal class

IP66 or IP68 @4Mpa

Work enviroment

Martine or underwater

Contact material

Precious Metal

Pressure

4Mpa(400m)

Lead Wire

Teflon wire

CE Certified

YES

Life

500million revolutions



¤ Feature

♦Compact miniature design , small size fit for harsh space

♦Moudel design ; Meet the most of requirement

♦All stainless steel with water proof

♦Can combine signal and power in same slip ring




¤ Typical Application

♦Remote operated vehicles(ROV)

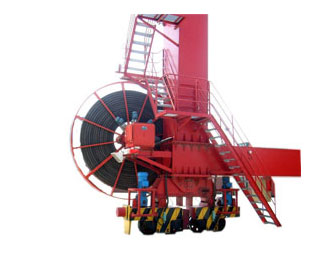

♦Winch and TMS application

♦Industrial machinery

♦Seismic surveying
