Home>Products>Pancake Slip Rings

盘式滑环

Product Type：Pancake Slip Rings Product Model：PSR-P31-4

For space adn cost conscious requirements,platter sepa-rate slip ring can be an ideal solution.The unit suppplied generally consists of a slip ring based on a PCB style adn matching brush block or board depending on the require-ments.The PSR-P31-4 features a 31mm through bore for shaft mounting and contacts by connector instead of lead wire.It can be mounted in 6.4mm height space. ...

Performan
Drawings
Feature
Install

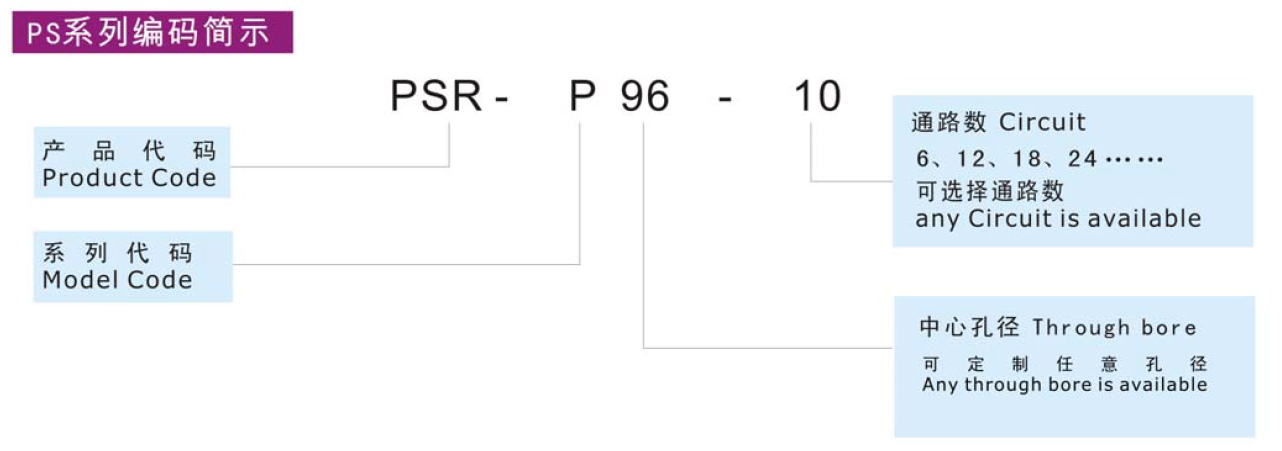

Order
Download

Electrical		Mechanical
Circuits	4 circuits	Through bore	31mm
Current	2A	Speed	30rpm
Voltage	240VAC	Torque	0.8N.m
Insulation resistance	500MΩ@500VDC	Environment
Electrical noise	40mΩ max	Working temp.	-40℃~+80℃
Dielectric strength	600VDC@50Hz	Storage temp.	-45℃~+85℃
Precious contact metarial		Hunidity	60%
Precious contact metarial		Seal class	Ip54
