Capsule slip ring

Product Type:Capsules Slip Ring Product Model:PSR-C12
he PSR-C12 slip ring capsule is a standard, off-the-shelf  ,no through bore series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90o V-groove ring design for each ring, the PSR-C12 provides  12 circuit configurations, smoother running, lower torque low contact wearrates than competitive slip ring....
  • Performan

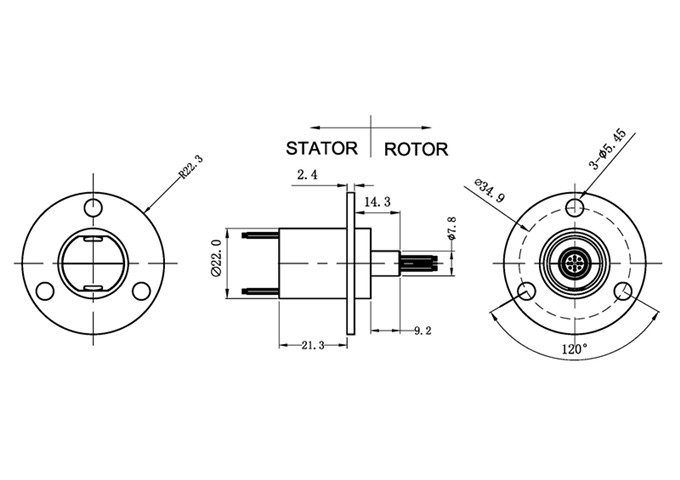

  • Drawings

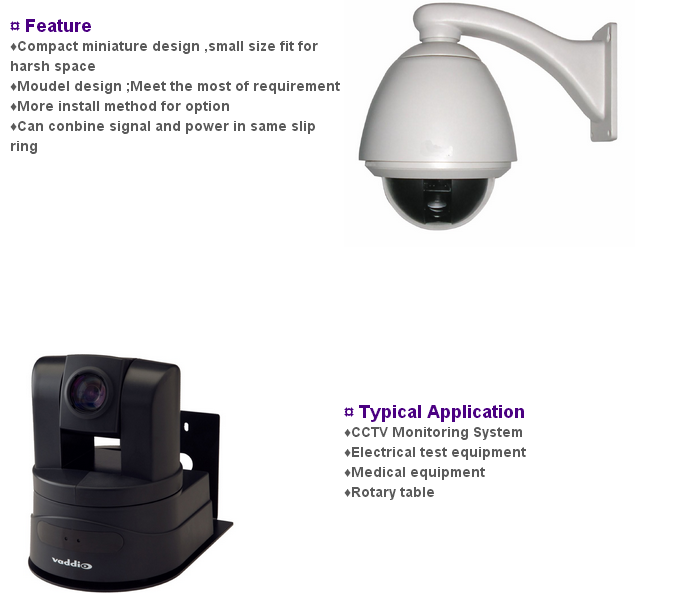

  • Feature
  • Install

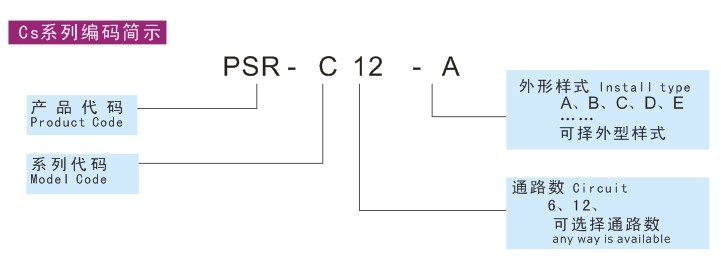

  • Order
  • Download



Electrical Spec.

Options

Circuit

12

Support  for  higher speed:500Rpm

Rating voltage

240VAC

More install method for option

Rating current

2A/Ring,5A,10A by parrelled

Lead length can be appointed

Insulation resistance

1000MΩ@500VDC

Cable  Exit  is optional

Dielectric strength

600VDC@50Hz

Available connecter and Heat-shrink tube

Electrical noise

10mΩ@6VDC,50mA, 5Rpm



 Mechanical Spec

Environment

Speed

300Rpm

Working temperature

-40~+80

Torque

0.01N.M

Mechanical vibration

MIL-SID-810E

Seal class

IP54

Humidity

10% to 90% RH non-condensing

Contact material

Precious MetalGold-Gold

Materials

Lead Free,RoHS compliant

Lead Wire

12 color AWG#28 Teflon wire

CE Certified

YES

Life

30million revolutions



Installtion Guide

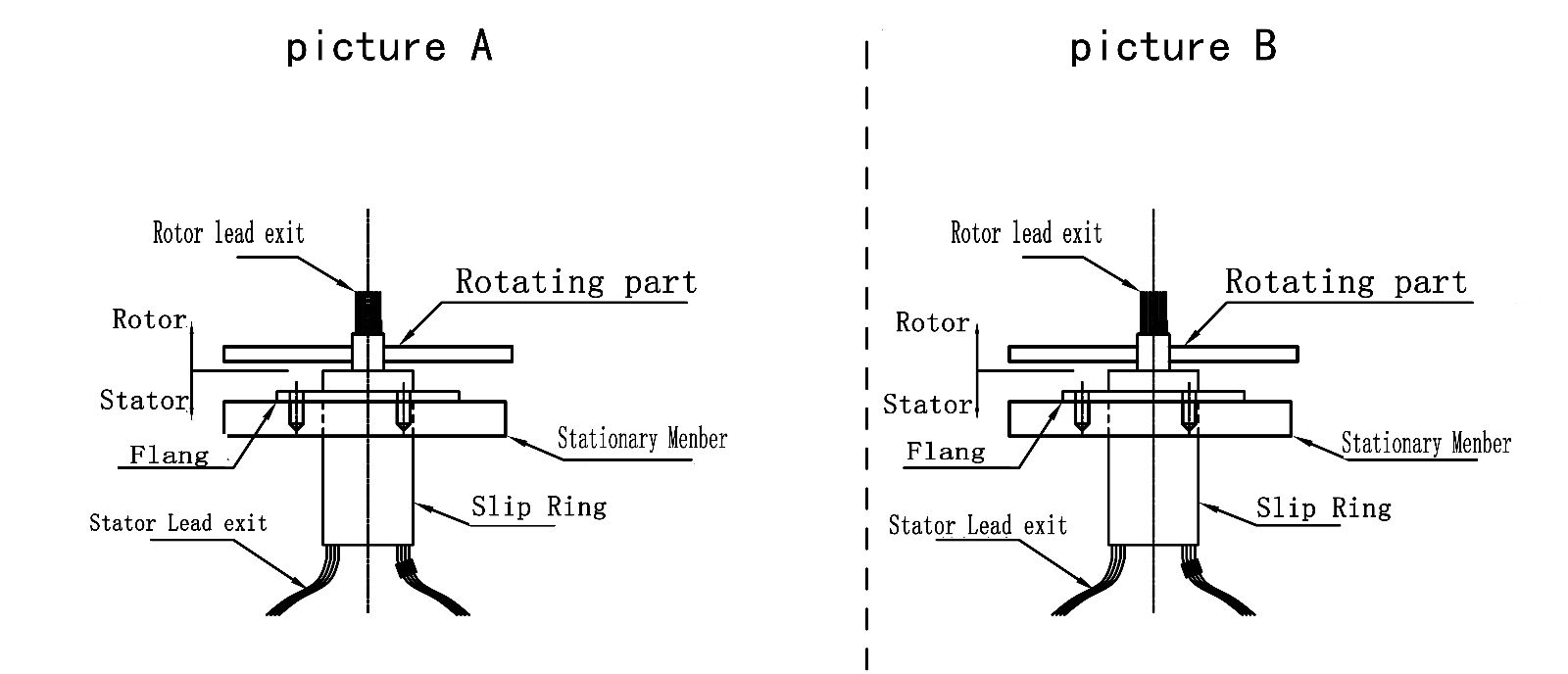

Picture A

1. Position the slip ring in the desired location and tighten both set screws to the shaft . Maximum torque 25Ib-in(DO NOT OVER TOQUE)

2. Route the wiring and make neccessary connections . Do not allow the wiring to restrict free rotation of the slip ring .Do not constrain wiring such that wire flexing occurs . Doing so will ultimately cause failure(breakage of the wiring)

Picture B

1. Align the mouting holes(M3x8) in the flange to mouting base and install mouting screws(M3), securely tighten screws.

2. Route the wiring and make the neccessary connections . Donot allow the wiring to restrict free rotations of the slip ring .


CAUTION:

 Because of possible geometric mismatching between the customer's application and the slip ring , 'hard mouting' of both ends of the slip ring(i.e,.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
