Capsule slip ring

Product Type:Capsules Slip Ring Product Model:PSR-C24
The PSR-C24 slip ring capsule is a standard, off-the-shelf  ,no through bore series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Using a 90o V-groove ring design for each ring, the PSR-C24 provides 24 circuit configurations, smoother running, lower torque low contact wearrates than competitive slip ring....
  • Performan

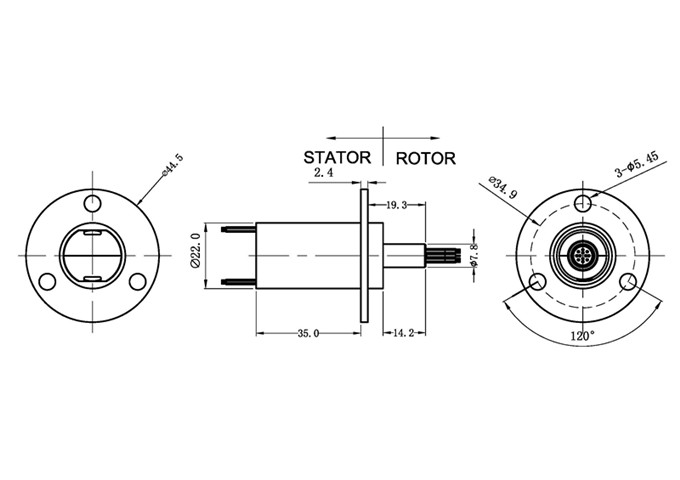

  • Drawings
  • Feature
  • Install

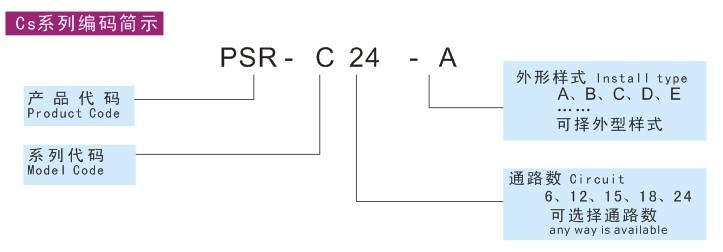

  • Order
  • Download




Electrical Spec.

Options

Circuit

24

Support  for  higher speed:500Rpm

Rating voltage

240VAC

More install method for option

Rating current

2A/Ring,5A,10A by parrelled

Lead length can be appointed

Insulation resistance

1000MΩ@500VDC

Cable  Exit  is optional

Dielectric strength

600VDC@50Hz

Available connecter and Heat-shrink tube

Electrical noise

10mΩ@6VDC,50mA, 5Rpm



 Mechanical Spec

Environment

Speed

300Rpm

Working temperature

-40~+80

Torque

0.01N.M

Mechanical vibration

MIL-SID-810E

Seal class

IP54

Humidity

10% to 90% RH non-condensing

Contact material

Precious MetalGold-Gold

Materials

Lead Free,RoHS compliant

Lead Wire

24 color AWG#28 Teflon wire

CE Certified

YES

Life

30million revolutions

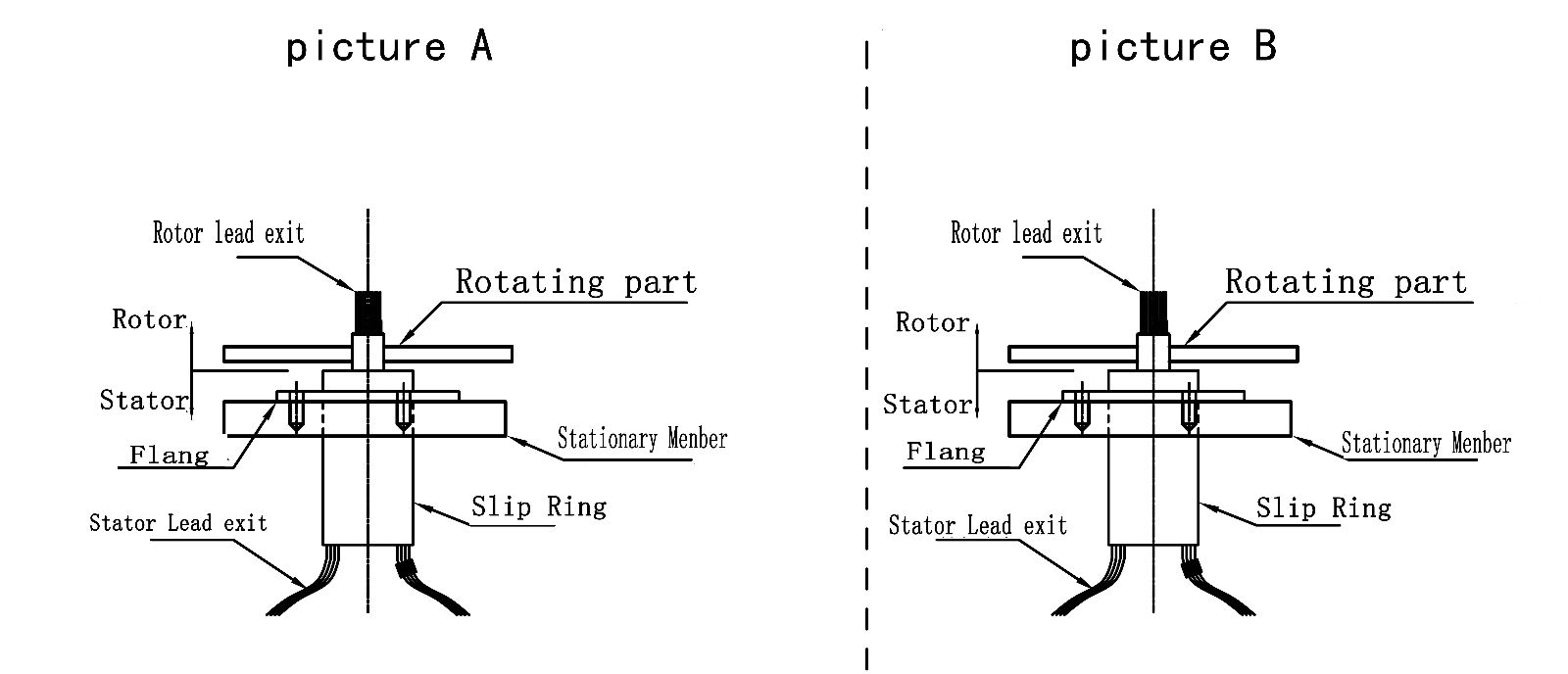

Installation Guide:


Picture A
1.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)

2.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).


Picture B
1.Align the mouting holes(M3X8)in the flange to mouting base and install mouting screws(M3),securely tighten screws.
2.Route the wiring and make neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.

CAUTION:
Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
