High speed slip ring

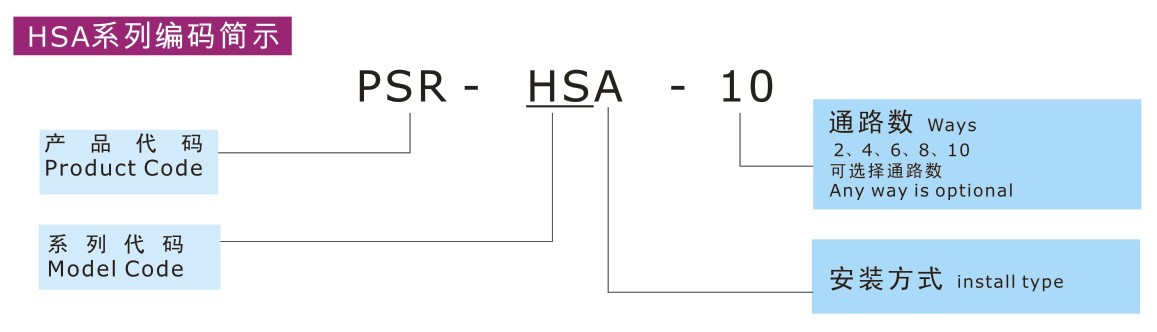

Product Type:High Speed Slip Rings Product Model:PSR-HSA-10
PSR-HSA  slip ring capsule is a standard off-the-shelf and high speed series product that uses gold contacts at the rotary interface . Color-coded lead wires are used on both the stator and rotor for simplified electrical connections , speed can meet  10000Rpm with no need cooling . Using a 90ºV-groove ring design for each ring , the PSR-HSA-10 provides smoother running , lower toque , low contact wear rates than competitive slip ring , provides 10 circuit , 2A/circuit for power...
  • Performan

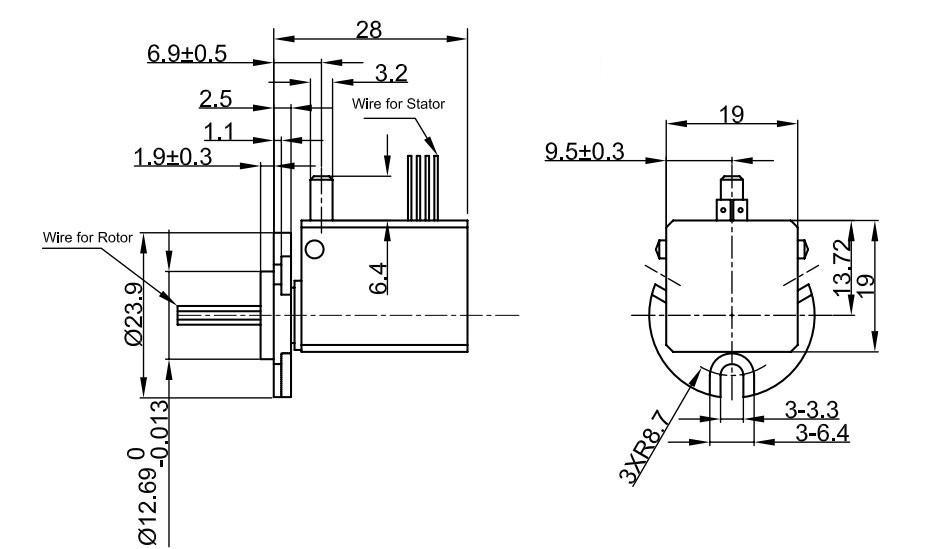

  • Drawings
  • Feature
  • Install
  • Order
  • Download

Electrical Spec.

Options

Circuit

10

Flanfe for set up

Rating voltage

380VAC

Can combine signal and power in same slip ring

Rating current

5A ,10A,15A……

Can combine more circuits:1-36Ring

Insulation resistance

1000M@500VDC

higher voltage and current capacity

Dielectric strength

600VDC@50Hz

various radial exits are available

Electrical noise

70mΩ @6VDC,50mA, 5Rpm



 Mechanical Spec

 Environment

Speed

1-12000Rpm

Working temperature

-40~+120

Torque

10N.cm

Relative humidity

10% to 95% RH non-condensing

Seal class

IP54 (IP68Options)

Materials

Lead Free,RoHS compliant

Contact material

Precious Metal

CE Certified

YES

Life

100million revolutions

Mechanical vibration

MIL-SID-810E

HSA-10


¤ Feature

♦Compact miniature design , small size fit  for harsh space

♦Special design for long life

♦Can transmit strain gages thermocouples sensor signal

♦Stainless with sealing for hard environment




¤ Typical Application

♦Aerospace Navigation testing

♦Eectrical test equipment

♦Testing table

♦Military system
