High speed slip ring

Product Type:High Speed Slip Rings Product Model:PSR-HSB-10

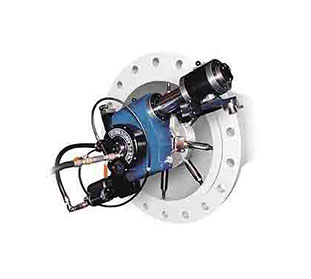

PSR-HS series is designed to mout on the end of a rotating shaft and tansmission electrical connection to strain gages , thermocouples, or other sensors from rotor to stator with high speed , up to 12000rpm with no need cooling . The slip ring brushes and rings are made of precious metals , which minimize noise and enable the assemblies to be used for low level instrumentation signal. This series are available in 4, 6, 8, and 10 circuit slip ring assemblis with lightweight and compact siz...
  • Performan

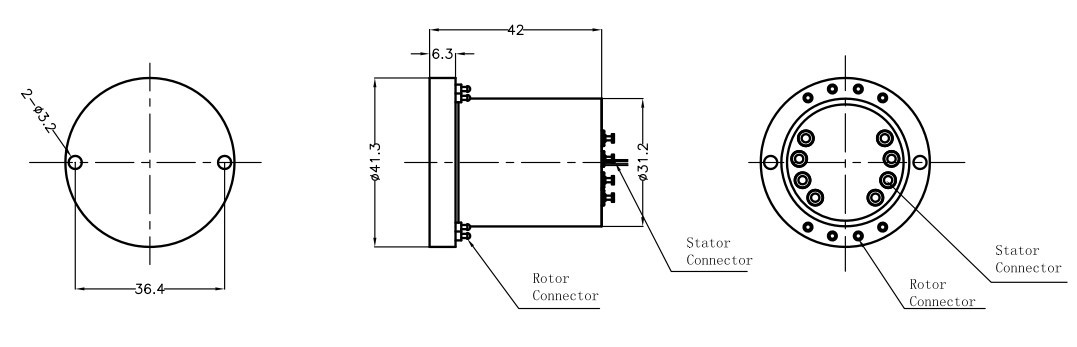

  • Drawings
  • Feature
  • Install

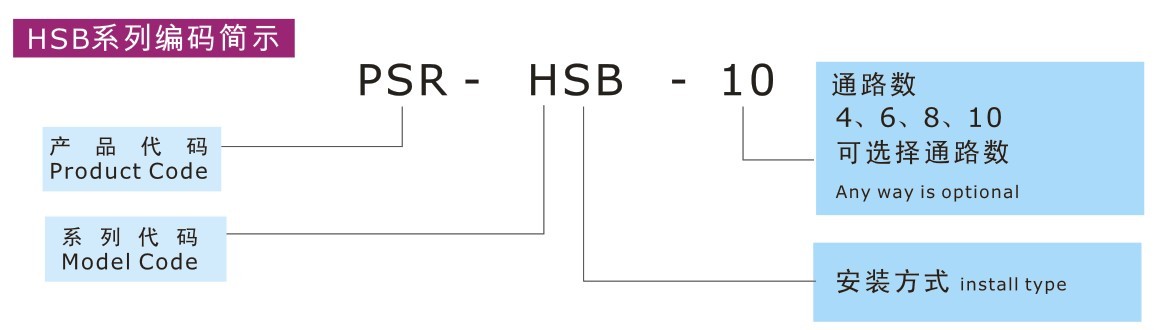

  • Order
  • Download

Electrical Spec.

Options

Rating voltage

380VAC

Flanfe for set up

Rating current

5A ,10A,15A……

Can combine signal and power in same slip ring

Insulation resistance

1000M@500VDC

Can combine more circuits:1-36Ring

Dielectric strength

600VDC@50Hz

higher voltage and current capacity

Electrical noise

70mΩ @6VDC,50mA, 5Rpm

various radial exits are available

 Mechanical Spec

 Environment

Speed

1-12000Rpm

Working temperature

-40~+120

Torque

10N.cm

Relative humidity

10% to 95% RH non-condensing

Seal class

IP54 (IP68Options)

Materials

Lead Free,RoHS compliant

Contact material

Precious Metal

CE Certified

YES

Life

100million revolutions

Mechanical vibration

MIL-SID-810E

¤ Feature

♦Compact miniature design , small size fit for harsh space

♦Special design for long life

♦Can transmit strain gages thermocouples sensor signal

♦Stainless stell with sealing for hard environment

♦Meet the requirement of industrial field




¤ Typical Application

♦Aerospace and Navigation testing

♦Electrical test equipment

♦Testing table

♦Military system
