High speed slip ring

产品类型:High Speed Slip Rings 产品型号:T20H
PSR-TSH slip ring is a standard , off-the-shelf series product with end shaft install , it uses gold cntacts at the rotary interface , specify design for high speed . Color-coded lead wires or connector for both the stator and rotor for simplifiedele ctrical connections.Using a specify design high speed , the PSR-TSH provides smoother running , lower torque , low contact wear rates than competitive slip ring ,Cooling system to ensure more long life and more exactly performmance . ...
  • 性能
  • 尺寸图
  • 特征
  • 安装方法

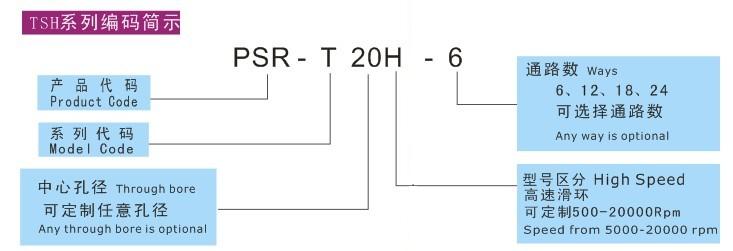

  • 订货号
  • 下载

Electrical Spec.

Options

Rating voltage

380VAC

Flanfe for set up

Rating current

5A ,10A,15A……

Can combine signal and power in same slip ring

Insulation resistance

1000M@500VDC

Can combine more circuits:1-100Ring

Dielectric strength

600VDC@50Hz

higher voltage and current capacity

Electrical noise

70mΩ @6VDC,50mA, 5Rpm

various radial exits are available

 Mechanical Spec

 Environment

Speed

1-20000Rpm

Working temperature

-40~+80

Torque

40N.cm

Relative humidity

60%

Seal class

IP54 (IP68Options)

Materials

Lead Free,RoHS compliant

Contact material

Precious Metal

CE Certified

YES

Lead Wire

12color Teflon wire

Mechanical vibration

MIL-SID-810E

Life

50million revolutions



高速导电滑环




¤ Feature

♦Compact miniature design , small size fit for harsh space

♦Specity design for high speed , long life

♦Moudel design ; Meet the most of requirement

♦Available for high speed date , sensor , communication

¤ Typical Application

♦Aerospace and Navigation


♦Electrical test equipment


♦Defence test

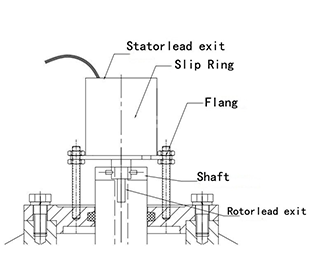

Installation Guide:


1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)


2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring
.







CAUTION:

Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
