PSR-P150-4 Pancake slip ring

Product Type:Pancake Slip Rings Product Model:PSR-P150-4 Pancake slip ring
 PSR-PS is a pancake slip rings that with any size through-bore and Min thickness , lower toque , exactly performance for transfer signal and power wih rotation . Use precious metal as contact materal , enclose type and serperate type is available...
  • Performan

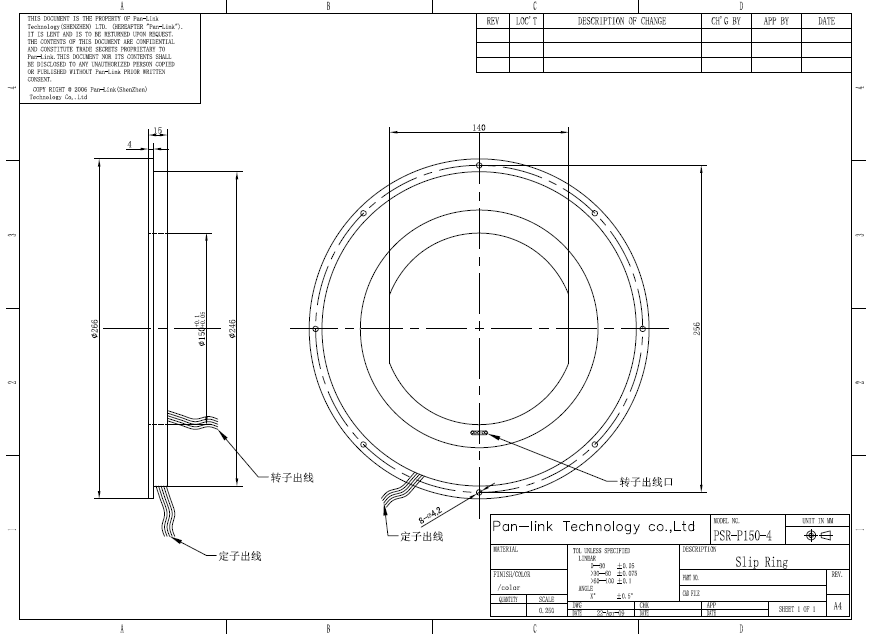

  • Drawings
  • Feature

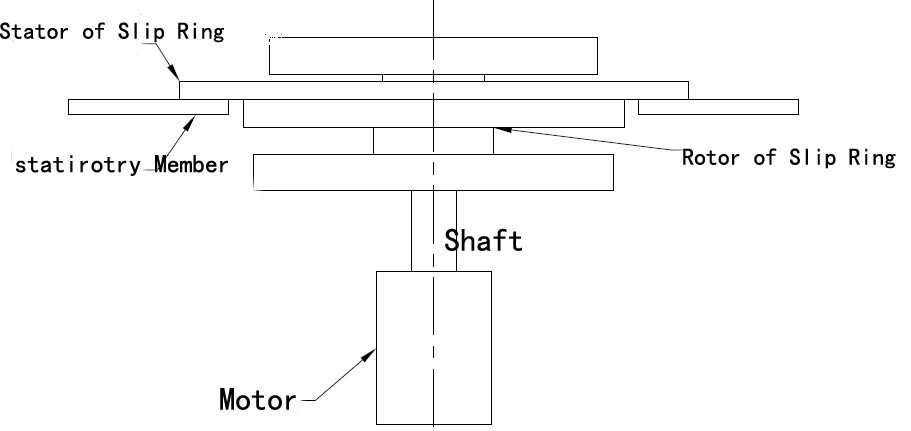

  • Install

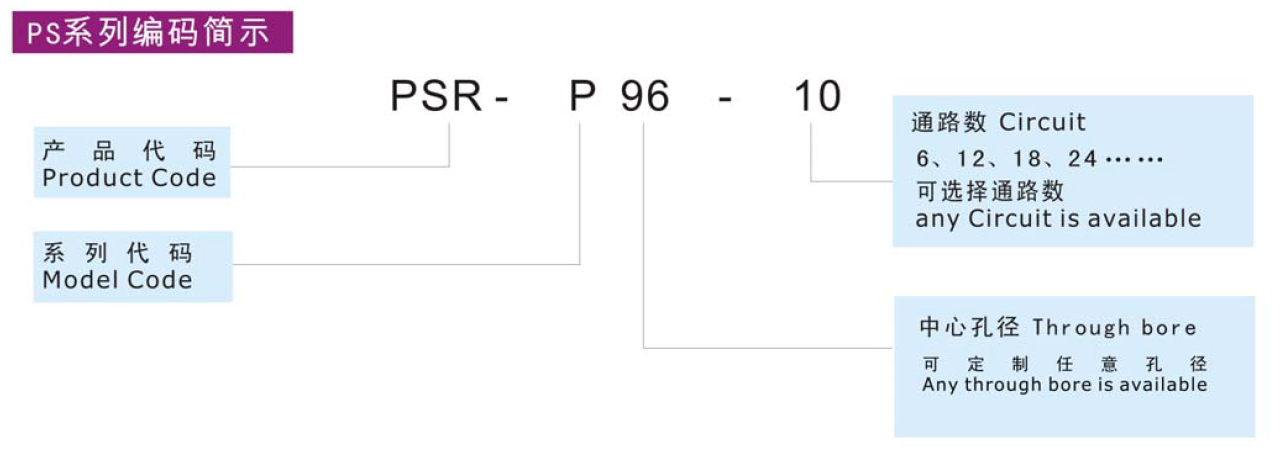

  • Order
  • Download
 Options
Rating voltage 380VAC Flange for set up
Rating current 5A /Ring,10A /Ring,15A /Ring size:38mm to 2m outside diameter(depend on circuits),and 10mm Min length
Insulation resistance 1000MΩ@500VDC Can combine more circuits:1-100Ring
Dielectric strength 600VDC@50Hz Higher voltage and current capacity
Electrical noise 10mΩ@6VDC,50mA, 5Rpm Various radial exits are available
Mechanical Spec Environment
Speed 300Rpm Working temperature -40℃~+80℃
Torque 40N.cm Mechanical vibration MIL-SID-810E
Seal class IP54 (IP68Options) Humidity 10% to 90% RH non-condensing
Contact material Precious Metal Materials Lead Free,RoHS compliant
Lead Wire 12color 0.5mm2Teflon wire CE Certified YES
Life 500million revolutions

Feature

♦Compact miniature design , small size fit for harsh space

♦Moudel design ; Meet the most of requirement

♦More install method for option

♦Can combine signal and power in same slip ring




¤ Typical Application

♦Satellite receiver

♦Electrical test equipment

♦Test Table

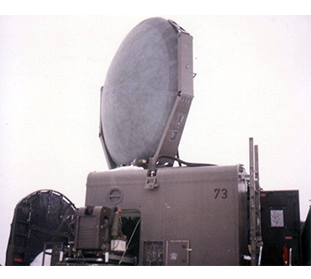

♦Radar
