| Model |
Photo |
Through Bore |
Circuits |
Current |
Voltage |
OD*L |
Operation Speed |
| PSR-M4H |
 |
no through bore |
4 |
2A/Ring |
240VAC |
12.5mm*14mm |
300Rpm |
| PSR-T12 |
 |
12.7mm |
6/12/18/24 |
5A,10A,15A…… |
380V/AC |
ID12.7*OD55mm |
300Rpm |
| PSR-M6 |
 |
no through bore |
6 |
2A/Ring,5A,10A by pa |
240VAC |
12.7mm*20.35mm |
300Rpm |
| PSR-T25 |
 |
25.4mm |
6-126 |
5A,10A,15A…… |
380V/AC |
ID25.4mm*OD78mm |
300RPM |
| PSR-T25H-6 |
 |
3mm-100mm |
1-100 |
5A , 10A ,15A…… |
380VAC |
78mm*48mm |
1-10000Rpm |
| PSR-M8 |
 |
no through bore |
8 |
2A/Ring |
240VAC |
12.7mm*20.5mm |
300Rpm |
| PSR-T38 |
 |
38.1mm |
6-180 |
10A,15A,20A…… |
380V/AC |
ID38.1mm*OD99mm |
300RPM |
| PSR-C6 |
 |
no through bore |
6 |
2A/Ring |
240VAC |
22.mm*14.5mm |
300Rpm |

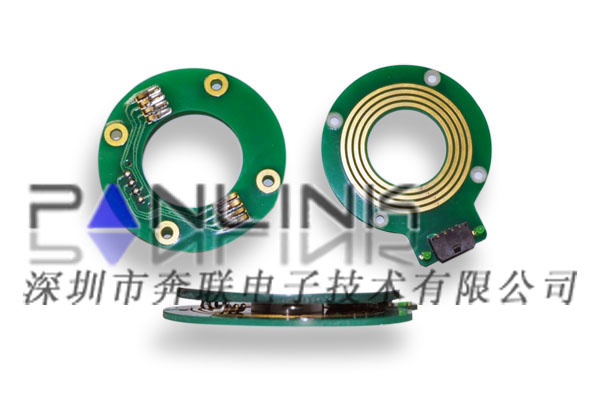

| PSR-P31-4 |
 |
31 |
1-4 |
2A/路 |
240V |
ID31*OD65*H6.4(mm) |
300RPM |
| PSR-HSB-10 |
 |
/ |
1-10 |
2A |
380VAC |
31.2mm*42mm |
1-12000Rpm |
| PSR-F3-24 |
 |
3mm |
24 |
2A |
380VAC |
22.0mm*44.1mm |
300Rpm |
| PSR-SD-16 SDI slip ring |
 |
--- |
16 |
2A |
240VAC |
22.0mm*28.8m |
300Rpm |
| PSR-M12 |
 |
no through bore |
12 |
2A/Ring |
240VAC |
12.7mm*25.1mm |
300Rpm |
| PSR-T50 |
 |
50mm |
6-246 |
10A,15A,20A…… |
380V/AC |
ID50mm*OD119mm |
300RPM |
| PSR-C12 |
 |
no through bore |
12 |
2A/Ring |
240VAC |
22mm*21.3mm |
300Rpm |
| PSR-PRJ-218SMA |
 |
/ |
2 |
/ |
/ |
31.75mm*40.6mm |
300Rpm |
| T20H |
 |
20mm |
10 |
5A , 10A ,15A…… |
380VAC |
37mm*57mm |
0-10000Rpm |
| PSR-F7-12 |
 |
7mm |
12 |
2A |
380VAC |
24.8mm*27.6mm |
300Rpm |
| PSR-M6S |
 |
no through bore |
6 |
2A/Ring |
240VAC |
12.7mm*14.1mm |
300Rpm |
| PSR-SD7-12 SDI slip ring |
 |
--- |
12 |
2A |
240VAC |
24.8mm*29.6mm |
300Rpm |
| PSR-T70 |
 |
70mm |
6-300 |
5A,10A,15A…… |
380V/AC |
ID70mm*OD138mm |
300RPM |
| PSR-C15 |
 |
no through bore |
15 |
2A |
240VAC |
22.0mm*27.4mm |
300Rpm |
| PSR-FORJ-R1 |
 |
/ |
single |
/ |
/ |
/ |
2000rpm |
| PSR-T100 |
 |
101.6mm |
6-300 |
5A,10A,15A…… |
380VOC |
ID101.6mm*OD138mm |
300Rpm |
| PSR-F15-24 |
 |
15mm |
24 |
2A |
380VAC |
32.8mm*46.73mm |
300Rpm |
| PSR-HSA-10 |
 |
/ |
10 |
2A |
380VAC |
28mm |
1-12000Rpm |
| PSR-M12S |
 |
no through bore |
12 |
2A |
240VAC |
12.7mm*19.7mm |
300Rpm |
| PSR-SD15-24 SDI slip ring |
 |
--- |
24 |
2A |
240VAC |
32.8mm*46.71mm |
300Rpm |
| PSR-C24 |
 |
no through bore |
24 |
2A/Ring,5A,10A by pa |
240VAC |
22.0mm*35.1mm |
300Rpm |
| PSR-FORJ-R2 |
 |
/ |
2 |
/ |
/ |
20*65（mm） |
100Rpm |
| PSR-1W141R2 |
 |
/ |
2 channels |
Frequency range 14GH |
VSWR 1.2 |
/ |
60rpm |
| PSR-RW01 |
 |
/ |
1 channel |
Frequency range 13.7 |
VSWR 1.2 |
46*64(mm) |
50rpm |
| PSR-P150-4 Pancake slip ring |
 |
150mm |
1-26 |
2A |
240VAC |
ID150*OD266*H15(mm) |
300Rpm |
| PSR-P31-4 Pancake slip ring |
 |
31mm |
1-4 |
2A |
240VAC |
ID31*OD65*H6.4(mm) |
300Rpm |
| PSR-HTA-CS High temperature slip ring |
 |
/ |
24 |
2A/Ring |
380VAC |
22.0mm*34.75mm |
300Rpm |
| PSR-P82-10 Pancake Slip Ring |
 |
82mm |
6/12/18/24 |
5A/10A/15A |
380VAC |
ID82*OD180*H10(mm) |
300Rpm |
| PSR-T168 Large size slip ring |
 |
3mm-3m |
1-100 |
100A-1000A |
380VAC |
|
0-300Rpm |
| PSR-HTA-12-6 |
 |
12.7mm |
1-100circu |
5A , 10A , 15A/Ring |
380VAC |
55mm*33.8mm |
300Rpm |
| PSR-GP1 |
 |
/ |
1 |
/ |
/ |
34.8mm |
300Rpm |
| PSR-S13 |
 |
/ |
56 |
5A , 10A ,15A/Ring |
1000VAC |
72mm*420mm |
300-4000Rpm |
| PSR-CM-9 Slip ring for Operation Table |
 |
|
1-9 |
2A |
380VAC |
22.0mm*107.9mm |
300Rpm |
| PSR-WS-30 Slip ring for Wind Turbine |
 |
|
30 |
80A/Ring , 16A/Ring |
690VAC |
<600MM |
0-50Rpm |
| PSR-HD3-24 |
 |
' |
24 |
2A |
240VAC |
22mm*51.6mm |
300RPM |
| PSR-HD7-12 |
 |
' |
12 |
2A |
240VAC |
24.8mm*38.7mm |
300Rpm |
