High speed slip ring

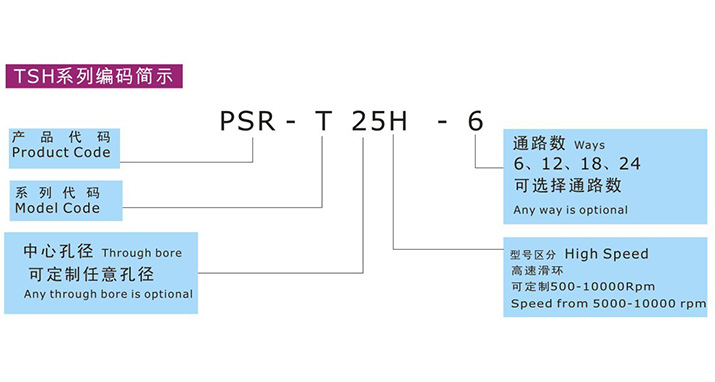

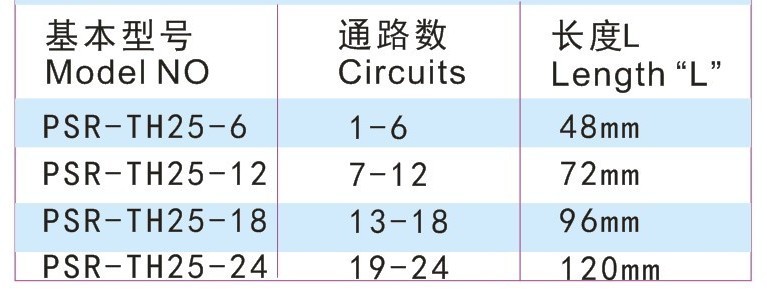

Product Type:High Speed Slip Rings Product Model:PSR-T25H-6
PSR-TSH slip ring is a standard , off-the-shelf high speed series product with through bore for shaft outside install , it is no need cooling , it uses gold contacts at the rotary interface , specify design for high speed . Color-coded lead wires or connector for both the stator and rotor for simplifiedele electrical connections .Using a specify design high speed , the PSR-TSH provides smoother running , lower torque , low contact wear rates than competitve slip ring . Any through bore size and ...
  • Performan

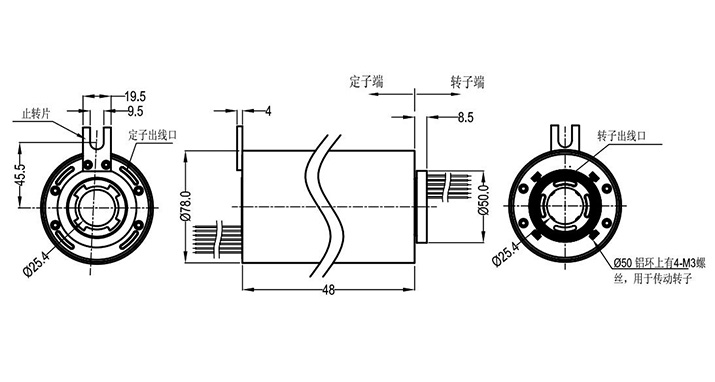

  • Drawings
  • Feature
  • Install
  • Order
  • Download

Electrical Spec.


Rating voltage


Flanfe for set up

Rating current

5A ,10A,15A……

Can combine signal and power in same slip ring

Insulation resistance


Can combine more circuits:1-100Ring

Dielectric strength


higher voltage and current capacity

Electrical noise

70mΩ @6VDC,50mA, 5Rpm

various radial exits are available

 Mechanical Spec




Working temperature


Through bore

25.4mm(3-100mm for optional)

Mechanical vibration



Relative humidity


Seal class

IP54 (IP68Options)


Lead Free,RoHS compliant

Contact material

Precious Metal

CE Certified


Lead Wire

12color Teflon wire




50million revolutions




¤ Feature

♦Compact miniature design , small size fit for harsh space

♦Moudel design ; Meet the most of requirement

♦Specify design for high speed , long life

♦Available for high speed date , sensor , communication


¤ Typical Application

♦Aerospace and Navigation

♦Electrical test equipment

♦Defence test


nstallation Guide:

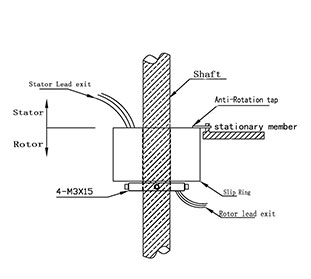

1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)

2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.



Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure.
